Split Surface Drilling rig
KG550型露天潛孔鉆車
Dimensions（L×W×H mm）
6500×2350×2400
Weight（kg）
6200
Φ Aperture(mm)
115-254
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG550型露天潛孔鉆車

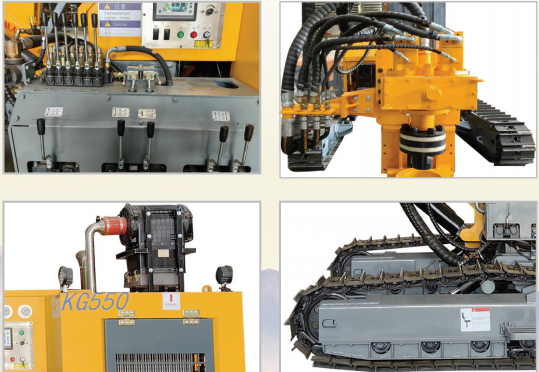

  • Equipped with a Yuchai four-cylinder engine and an integrated controller for real-time monitoring of  operational parameters;
  • Adopted the folding frame track and four-wheel drive , the track leveling and the enhanced piston walking  motor improve the working pressure and climbing capacity;
  • Wear-resistant materials are used in the sliding pressure strip to ensure the service life of the frame;
  • The double motor rotary head with a large reduction ratio provides a rotary torque of over 4000 Nm for the rig;
  •  The cylinder is equipped with a 20A roller chain for propulsion, significantly enhancing the reliability of the drilling operation;
  • The hydraulic system has been upgraded with high-strength and large-displacement cast iron gear pumps to ensure product quality and offer advantages such as long service life and stable performance;
  • The frame components are optimally arranged, significantly increasing the internal space and the housing is made of thickened profile folder,and the rig is with multiple access doors for convenient maintenance and servicing;
  • This drilling rig can be widely used in the drilling and blasting operations of large-diameter photovoltaic foundation piles,hydropower projects, open-pit mining, road construction, tunnel construction and other construction sites.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
