Hydraulic Rock Bolting Rig
KM211 Hydraulic Rock Bolting Rig

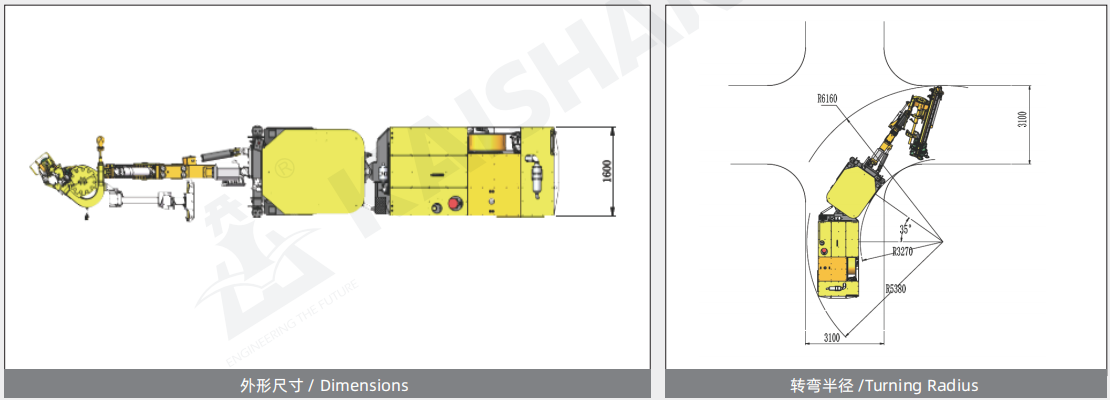

Dimensions (L*W*H mm)
10200×1600×1800/2650
Weight（kg）
12000
Φ Aperture(mm)
32-51
Power（Kw）
8/10
Gas Production(m3/min)
0.3
Gradability(°）
14
sales hotline
Get a quote
product details
Technical Parameters
KM211 Hydraulic Rock Bolting Rig

Designed for the construction of rock bolt in the pipe seam; Suitably qualified for anchoring operations in tunnels whose section extend to a width of over 3m and a height of over 3m.

  • Complete functions. The beam have two working stations and it is equipped with a magazine havinf a storage capacity of 10 rock bolt rods, along with optional protective netting module;it is capale of performing the following tasks:drilling,netting and instalation of rock bolting rod;
  • High safety.Operators are protected by the ceiling, far away from the dangerous area;
  • High effciency.The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition;
  • The rig provides a good view for the operator, the articulated chassis of four-wheel drive ensures the flexible,quick and safe driving in the narrow tunnel;
  • Considerable space and automatic functions enable the driver to concentrate on drilling in a safe,fast and accurate manner;
  • All the relevant parts are kept in good protection,meanwhile easy to maintain.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
