Hydraulic Scaling Rig
KQ311 Hydraulic Scaling Rig

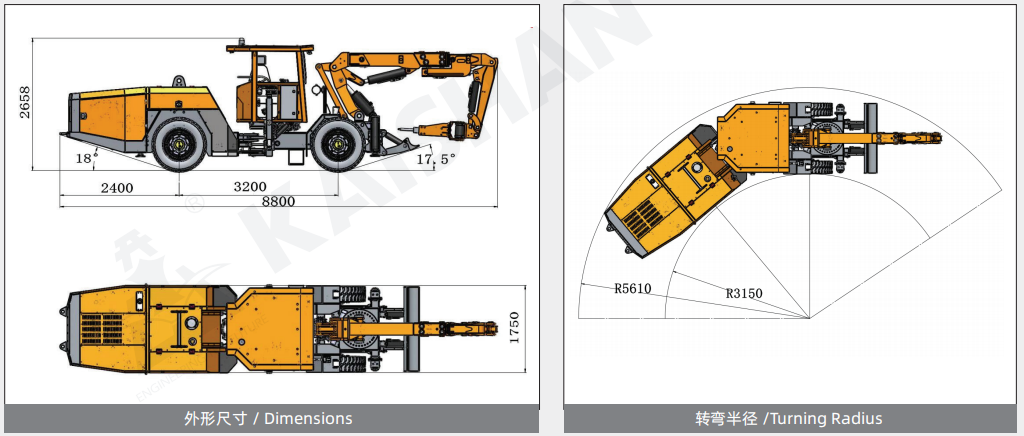

Dimensions (L*W*H mm)
8800×1750×2650
Weight（kg）
12000
Drill arm expansion and contraction(mm)
1200
Max working height(mm)
8300
Max working width(mm)
8800
Gradability(°）
14
sales hotline
Get a quote
product details
Technical Parameters
KQ311 Hydraulic Scaling Rig

Driven by diesel engine; Suitable for scaling operations in tunnels and non coal mine hill and various underground projects.

  • The folding arm is fitted with the hydraulic hammer and translation mechanism driven by the rotating oil cylinder and it is capable of all-round operations of working surface, top plate, side wall and base plate.
  • Proportion pilot control is applied to the hydraulic system, characterized by flexible manipulation and smooth operations.
  • The equipment can considerably improve the scaling efficiency and safety based on compact structure, excellent mobility, small turning radius and powerful climbing capacity.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
