Split Surface Drilling rig
KG420S/KG420SH Surface DTH Drill Rig
Dimensions (L*W*H mm)
6400×2250×2700 6400×2420×2700
Weight（kg）
5800/6100
Φ Aperture(mm)
90-152
Drilling Depth(m)
25
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG420S/KG420SH Surface DTH Drill Rig

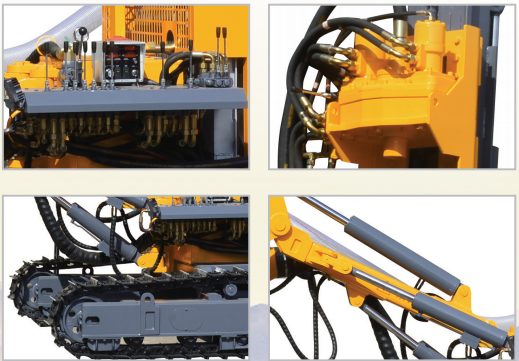

  • The drill rig is equipped with the two independent systems, namely diesel engine and motor, capable of separate operations.
  • The folding frame track, four-wheel drive and the tramming motor of plunger piston improve the working pressure and climbing capacity.
  • The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on limiting position.
  • The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability.
  • The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
  • Equipped with a dust collector, thus making operation more environment-friendly and reliable.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
