Split Surface Drilling rig
KG430/KG430H Surface DTH Drill Rig
Dimensions (L*W*H mm)
6300×2250×2700 6300×2400×2700
Weight（kg）
5250/5700
Φ Aperture(mm)
90-152
Drilling Depth(m)
25
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG430/KG430H Surface DTH Drill Rig

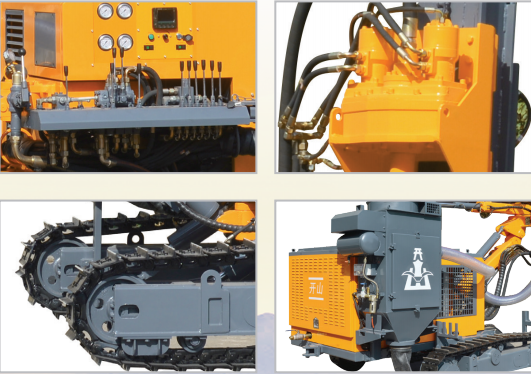

  • ;Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment.
  • The folding frame track, four-wheel drive are adopted;
  • Add track leveling and the tramming motor of plunger piston improve the working pressure and climbing capacity;
  • The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position;
  •  The double rotation motor increases the rotary torque and revolving speed;
  • The lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability;
  • The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity;
  • The additional ring makes handling and lifting convenient.
  • Equipped with a dust collector, thus making operation more environment-friendly and reliable.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
