Split Surface Drilling rig
KG520/KG520H Surface DTH Drill Rig
Dimensions (L*W*H mm)
6800×2200×2850 6800×2350×2850
Weight（kg）
6500×7000
Φ Aperture(mm)
105-152
Drilling Depth(m)
25
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG520/KG520H Surface DTH Drill Rig

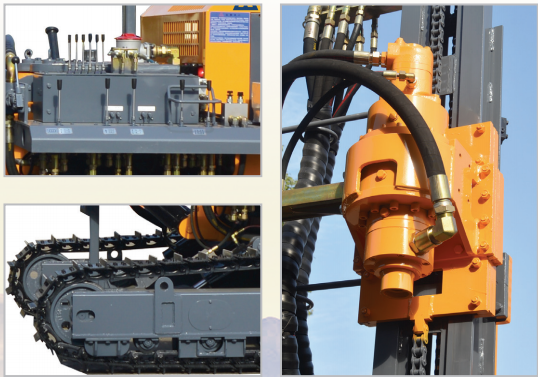

  • Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and enviroment;
  • The folding frame track and four-wheel drive are adopted;
  • The track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity;
  • The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirement of limiting position;
  • The rotary torque and revolving speed are reised;
  • The propulsion motor and chain are used to raise the lifting force and reliability;
  • The dust collector is enlarged to produce a bvetter effect on dust collection;
  • The thichened profile folder is used for the housing,thus improving its level of intensity and rigidity;
  • The additional ring makes handling and lifting convenient;
  • The KG520H surface DTH drilling rig is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
