Split Surface Drilling rig
KG350GF Photovoltaic Drilling Rig
Dimensions (L*W*H mm)
6000×2260×2600
Weight（kg）
6900
Φ Aperture(mm)
115-305
Gradability(°)
30
sales hotline
Get a quote
product details
Technical Parameters
KG350GF Photovoltaic Drilling Rig

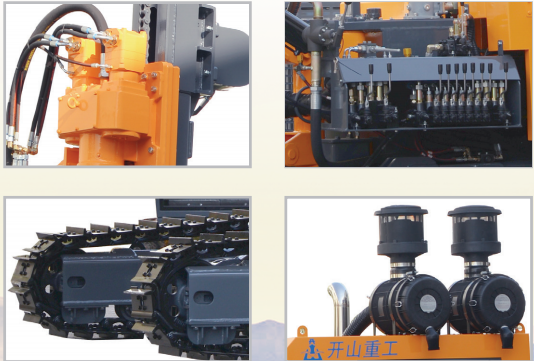

  • Equipped with 73KW engine, efficient desert-air filter, and the maximum hole diameter can reach 305mm;
  • Hydraulic system adopts high pressure cast iron pump, widened and thickened walking track plate, lifting chain adopts 24A roller chain, box type large section steel guide rail, to ensure that it has enough strength, one time can push 3.5 meters;
  • The gyrator is equipped with lareg torque of hydraulic rotary motors, and adopts high modulus-straight teeth and large reduction ratio transmission to provide the rotary torque of up to 6000Nm for the drilling rig;
  • It is suitable for the construction of foundation pile holes with large aperture;
  • KG350GF photovoltaic drilling rig can be equipped with 1 ton frame winch for feed(optional), convenient for hoisting drill bit and drilling tool,impact device, etc. When used on large slopes, you can choose to use 8-ton frame winch for rig(optional) to ensure sufficient traction when using the drill rig.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
