Integrated Surface Drilling Rig
KT9D Integrated Surface DTH Drill Rig
Dimensions (L*W*H mm)
8670×2300×3200
Weight（kg）
13000
Φ Aperture(mm)
115-165
Drilling Depth(m)
24
Gradability(°)
25
sales hotline
Get a quote
product details
Technical Parameters
KT9D Integrated Surface DTH Drill Rig

  • Integrating the down the hole drilling system and screw air compressor system, It is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes.
  • It is driven by the Yuchai diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system.

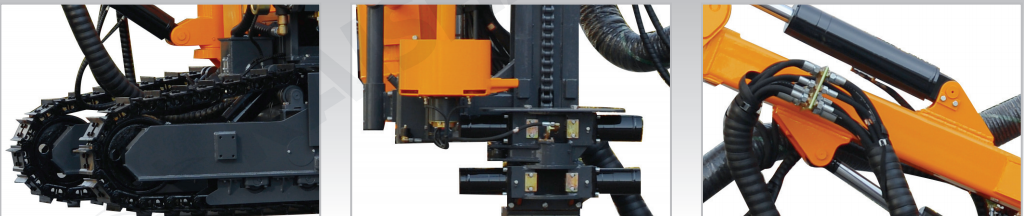

  • Equipped with the automatic rod handling system, drill pipe lubrication module drill pipe sticking prevention system, hydraulic dry dust collection system, etc.
  • The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
