Integrated Surface Drilling Rig
KD85 Integrated Surface DTH Drill Rig
Dimensions (L*W*H mm)
14300×3000×4100
Weight（kg）
33930
Φ Aperture(mm)
195-254
Drilling Depth(m)
27
Gradability(°)
25
sales hotline
Get a quote
product details
Technical Parameters

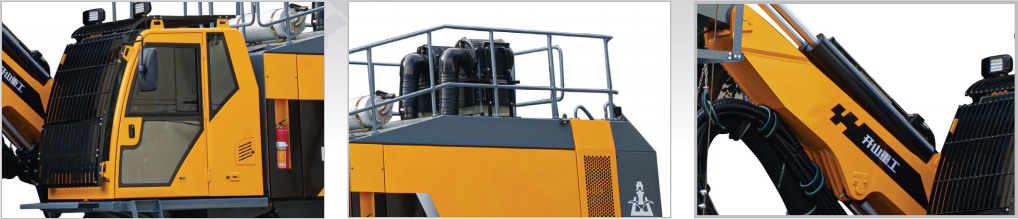

KD85 Integrated Surface DTH Drill Rig

  • Drilling vertical and inclined holes, mainly used for large open-pit mines,stonework blast large aperture holes and pre-splitting holes;
  • It is driven by the Cummins diesel engine and the screw compressor system and hydraulic transmission system are simultaneously driven by the output of both ends;
  • The drilling rig features an aluminum guide rail for superior drilling straightness;
  • Equipped with a two-stage screw machine and an air system that ensures stability;
  • it includes long drilling rods to minimize the frequency of rod changes, a drill pipe lubrication system, a dry dust collection system, and protection for the drilling rods' threads;
  • It also has a display function that shows drilling angles and depths, an automatic rod handling system to decrease labor intensity, an air-conditioned cab for a comfortable working environment, and an automatic control system for anti-jamming valves to reduce the likelihood of drill pipe sticking;
  • The entire drilling rig set is governed by an electric system, offering high sensitivity and labor-saving operations.And it is characterized by its exceptional integrity,advanced automation, efficient drilling capabilities, environment-friendliness,energy conservation, simple operation, flexibility and safe mobility,etc.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
