Hydraulic Tunnelling Drilling Rig
KJ311 Hydraulic Tunnelling Drilling Rig
Dimensions (L*W*H mm)
11500×1750×2000/3000
Weight（kg）
12000
Φ Aperture(mm)
32-76/42-89/42-102
Power（Kw）
13/20/18/21/22
Gas Production(m3/min)
0.3
Gradability(°）
14
sales hotline
Get a quote
product details
Technical Parameters
KJ311 Hydraulic Tunnelling Drilling Rig

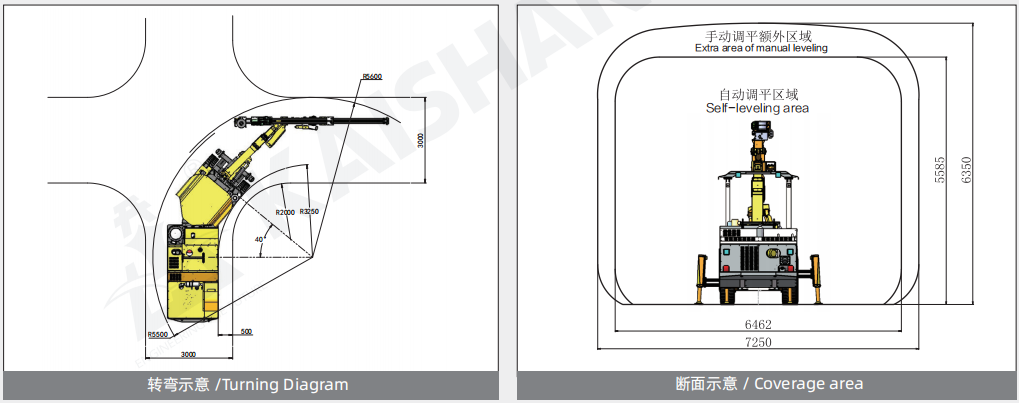

Suitable for the hard-rock of any section in the range of 12-35m².

  • The firm flexible boom is capable of optical coverage of the section;
  • 360º rotation and self-leveling beam make drill positioning easy;
  • The boom can also be used for the drilling of lateral cross-cut and rock bolting;
  • The drill rig provides a good view for the operator;
  • Balanced layout and the articulated chassis of four-wheel drive ensure the flexible,fastand safe driving in the narrow tunnel; the stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and mske it in good condition;
  • Considerable space and automatic functions enable the driver to concentrate on drilling in a safe,fast and accurate manner;
  • All the relevant parts are kept in good protection,meanwhile easy to maintain.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
